These kind of refractory anchors are flat sectioned for different application, mostly from light to medium refractories. They can be made in double and triple tined. They are bent outward from the centre after welding and installation. It is advisable to use reinforcement fibres in your refractory material.

The anchors can be hand welded or gun welded onto the steel casing. After welding, a backup layer can be pushed over the tines and onto the steel casing. The tines can be bent out, which will increase the transition of the forces in the refractory concrete onto the refractory anchors casing.

Available alloys in plate: CS, 304, 309, 253MA, 310S, 314, 321, 330, 800, 601 and more. Please contact us for other materials.

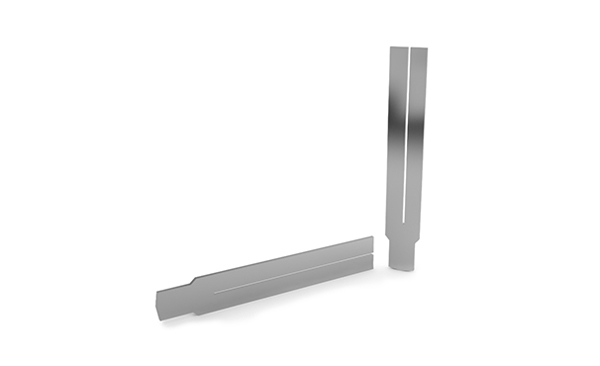

Y flat anchor

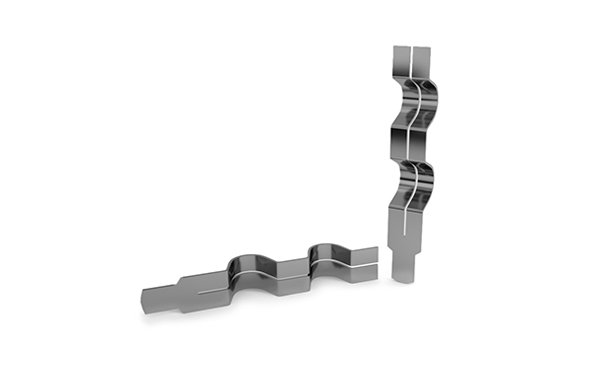

Y flat corrugated anchor

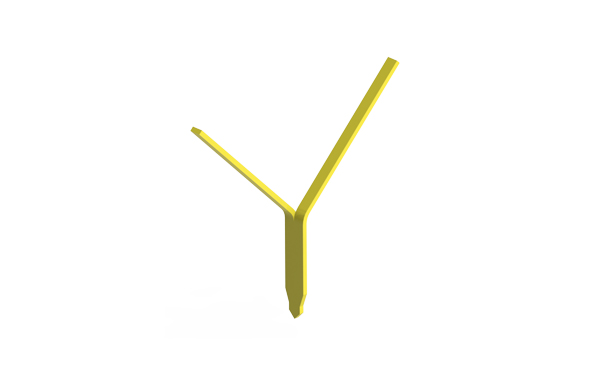

Y flat anchor

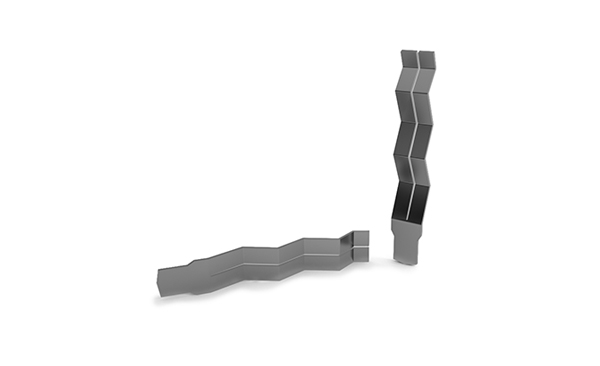

Y base grooved refractory anchor

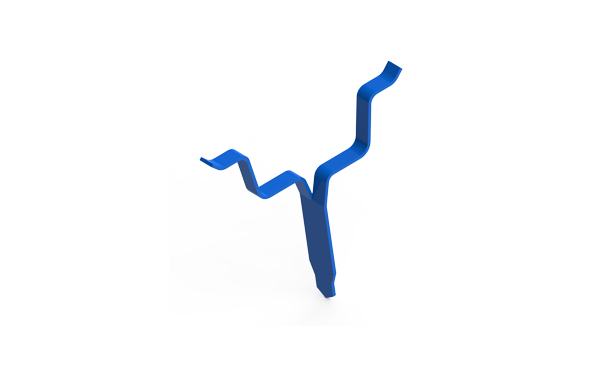

Y flat anchor

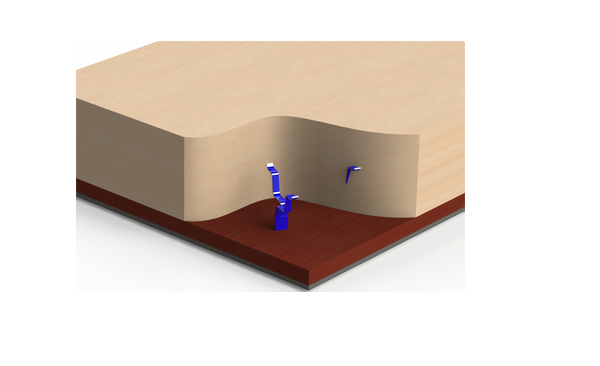

application

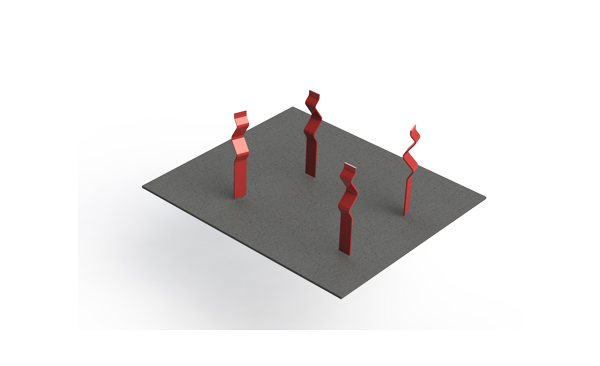

application
